plastic plate" is a type of high-strength galvanized steel sheet with inner and outer layers and a foa HDPE core layer passed through a high Made by temperature composite processing, widely used in truck body, trailer body, mobile house/car wall, mobile Container and other industries.
he new type of steel plastic composite material effectively reduces the external metal thickness and adds plastic micro foaming process, therebyThe product features new technology composite materials that reduce the weight of the vehicle body and are fully recyclable and pollution-free.

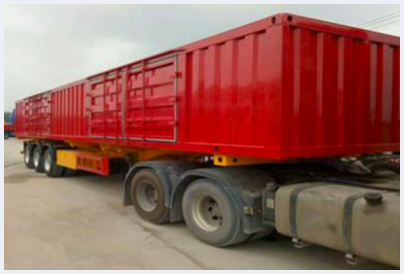

Self weight 9000kgs

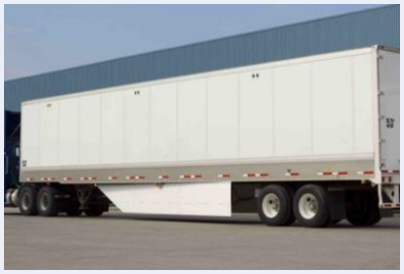

Self weight 6200kgs
| Serial Number | Project | Market standards | Competitor | Zhongyan |
|---|---|---|---|---|
| 0+1 | Steel Skin Min Yield | ≥80KSI | ≥80KSI | 100KSI |
| 1+1 | Skin Peel Strength | ≥ 6 N/mm² | 7 N/mm² | 10 N/mm² |
| 2+1 | Point Bend | ≥800 lbs | 820-850lbs | 950-1050lbs |
| 3+1 | Shear Buckle Test | ≥169KN | - | 190-200KN |
| 4+1 | Panel Adhesion | 10 cycles | 10 | ≥10 |
| 5+1 | Salt Spray Test | 800 hours | 1000 | ≥1000 |
